Frame Options

Altair Louvres can be fitted into a variety of aluminium and timber window frame systems available through our network of Window Manufacturers.

Breezway component system

Component System

Galleries can be installed into most window frames, allowing identical frames to be used throughout a project across varying windows and doors.

breezway easyscreen system

EasyscreenTM System

Aluminium framing system suitable for all building types with external screening* available. The system is supplied fully assembled.

*screens sold separately.

breezway sl2 system

SlimlineTM System

Developed to suit narrow frame applications and installation into concrete block construction when screening is not required.

The tabs provide a range of technical information relating to framing. For further details view the Breezway Design Manual

Component System

EasyscreenTM System

SlimlineTM System

Frame Depth

Varies

131mm

52mm

Frame Height

Up to 3020mm

Up to 3061mm

Up to 3048mm

Frame Construction

Aluminium, Timber, UPVC

Aluminium

Aluminium

Visible Fixings

Varies

None

None

Altair Louvre Bays

Yes

Yes

Yes

Altair IGLU System

Yes

Yes

No

Fixed Lite Bays

Yes

Yes1

Yes1

Screening

Outside or no Screen

Outside

No Integrated Screening

Control Options

Standard handle
Low Profile Handle
Ring handle
No handles (Powerlouvre)

Standard handle
Low Profile Handle
Ring handle
No handles (Powerlouvre)

Standard handle
Low Profile Handle
Ring handle

Stronghold

Yes

Yes

Yes

Security Options

Keylocks
Integrated Solid Bars
Screens

Keylocks
Integrated Solid Bars
Screens

Keylocks

Reveals & Flashing

Available

Available

Available

  1. Fixed Lite maximum bay area of 4m2 applies for Breezway framing.
View our dedicated page for 3D Frame Models

Blade Options

With Altair Louvre Windows you can choose blades that best suit the windows function. i.e. maximising views, letting in/reducing sunlight, reducing glare, gaining privacy, better acoustics, increased thermal comfort or creating your own design style.

Breezway clear glass louvre blade

Clear Glass

Full views and maximum natural sunlight.

Breezway clear glass louvre blade

Clear Low E Glass

Improves the insulating properties of the glass in cold or mixed climates.

Breezway Satina glass

Silk screen

Allows soft diffused light into the room and retains privacy.

blue tinted glass

Blue Tinted Glass

Works best to reduce solar heat gain, ideal for hot climates.

Breezway Green Tinted Glass blade

Green Tinted Glass

Works best to reduce solar heat gain, ideal for hot climates.

Breezway Dark Grey Tinted Glass blade

Dark Grey Tinted Glass

Works best to reduce solar heat gain while optimising views.

Breezway Grey Tinted Glass blade

Euro Grey Tinted Glass

Works best to reduce solar heat gain while optimising views.

Breezway Powder Coated Aluminium Blade

Powder Coated Aluminium

Provides privacy with ventilation, ideal for harsh climates.

Breezway DecoWood WRC Aluminium Blade

Woodgrain Aluminium

Aluminium with woodgrain finish provides privacy with ventilation.

Breezway Clear Anodised Aluminium blade

Clear Anodised Aluminium

Provides privacy with ventilation, ideal for harsh climates.

Breezway 102 152 blades
Single glazed blades are 6mm thick and available in 102mm or 152mm heights.
Fixed Blade Openings
Fixed Louvres are typically used where permanent ventilation, light, privacy or a degree of weatherproofing is required. E.g. Vented roofs, laundries, bathrooms, public amenities, housing for air conditioning units, screened walkways.

Please download our Design Manual for more information.

The tabs provide a range of technical information relating to blades. For further details view the Breezway Design Manual.

Altair Louvre Components

Easyscreen Frame

Slimline Frame

ios Frame

Standard Jambs
Glass & Aluminium blade length

jamb to jamb - 52mm

window width - 82mm

window width - 77mm

window width - 77mm

Glass & Aluminium Stronghold blade length

n/a

window width - 78mm

window width - 73mm

window width - 73mm

Extension Blade Heights
Manually Operated
Glass & Aluminium Blade Height

x = channel extension +20mm

x = channel extension +13mm

x = channel extension +20mm

x = channel extension +20mm

Handle Options

Whether you prefer pulling a handle or pushing a button Breezway has a louvre window perfect for you. Consider the functionality of your window or the needs of the user when choosing a control method.

Standard Handle

Designed to fit the contours of the human hand for easy use.

Low Profile Handle

Slim line and functional fit for install into bifold and sliding doors.

Ring Handle

For out-of-reach louvre placement, operated by a map rod*.

Close up of Powerlouvre

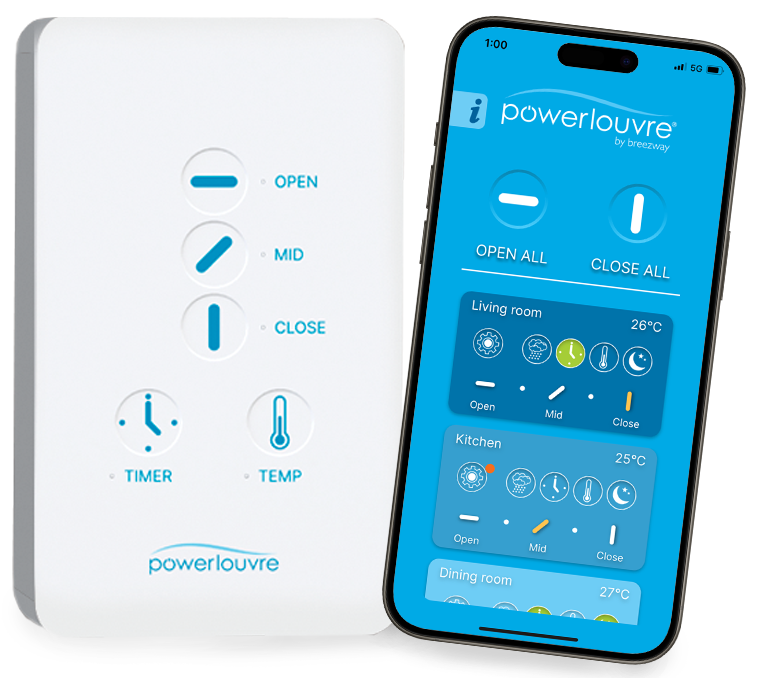

Powerlouvre System

Operated by wall switch or Building Management System.

Handle positions can be moved lower or higher, left or right depending on individual requirements.

View the Breezway Design Manual for more information on Handle Dimensions.

Breezway Map Rod

*Map Rod

2m, 3m & 4m set lengths or 1.8m-3.6m telescopic length available

The tabs provide a range of technical information relating to handles. For further details view the Breezway Design Manual.
View our dedicated page for 3D Handle Models

Colour Options

Breezway offers an extensive range of colours and finishes, many with optional colour matched clips and handles. Selecting the right anodising or powder for the atmospheric conditions of your building, along with correct maintenance, will be critical to the ongoing appearance of the finish.

To learn more about how to care for your aluminium finishes, please visit the Care & Maintenance page.

NOTES

These colours are indicative only and may not exactly reflect their true colour due to differences in screen calibration. Some colour variation between aluminium and plastic can occur. Industry accepted colour variation can also occur during the aluminium anodising process.

Some colour match options may incur a surcharge.

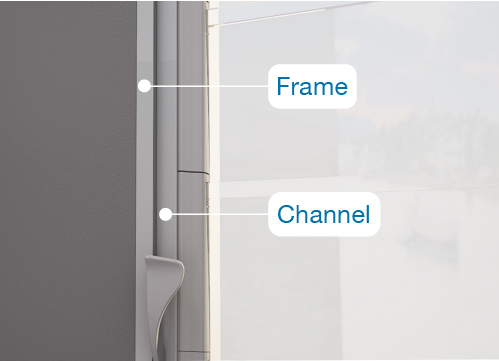

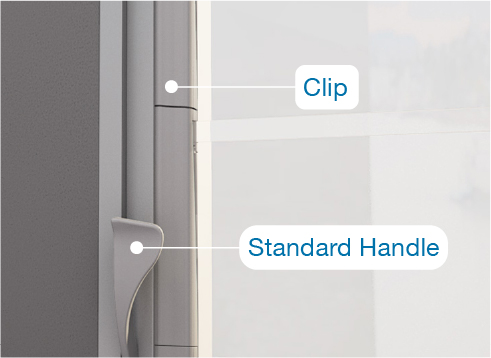

Breezway Components illustration for colour
Component descriptions for colours
Watch Colourfy Your Window to view our extensive range of earthy tones available.

Standard Malaysian Colours

(Applicable for Breezway Frames, Channels, Blades, Clips & Handles)

Please Note: Powdercoated and plastic finishes may vary. These standard colours are kept in stock and offered at standard pricing.

Powder Colour

Natural Anodised
(Frames & Channels only)

Powder Colour

Black

Powder Colour

White

Powder Colour

Misty Grey
(Clips & Handles only)

Off Standard Malaysian Colours

(Applicable for 152mm Clips & Handles)

Please Note: These off standard colours have a longer lead time with a surcharge for smaller orders.

Powder Colour

Mid Bronze

Powder Colour

Notre Dame

Powder Colour

Slate Grey

Powder Colour

Almond

Powder Colour

Hammersley Brown

Powder Colour

Charcoal

Powder Colour

Anodic Bronze

Off Standard Malaysian Powder Coated Colours

(Applicable for Breezway Frames, Channels and Blades)

Please Note: *Colour surcharge applicable for Woodgrain powder coating finish.

Powder Colour

Silver

Powder Colour

Pro Grey

Powder Colour

Lite Grey

Powder Colour

Cadet Grey

Powder Colour

Ash Grey

Powder Colour

Cava Brown

Powder Colour

Mission Brown

Powder Colour

Line Grey

Powder Colour

Slate Grey

Powder Colour

Marengo Grey

Powder Colour

Black Shield

Powder Colour

Gris Sable

Powder Colour

Tanami Brown

Powder Colour

Steel Bronze

Powder Colour

Velvet Brown

Powder Colour

Beige

Powder Colour

Ivory Pine

Powder Colour

Cherry*

Powder Colour

Ciliegio*

Powder Colour

Noce*

Powder Colour

Mahogony Noce*

Security Options

Altair Louvres offer a wide variety of barrier options to choose from including security bars and screens.

Breezway Security bars

Security Bars

Effective barrier when the louvre is open. Only suitable for 152mm blade heights. Optional 16mm D bar provides neat finish with no visible louvre and jamb fixings while the U channel system functions as an add on to the Altair Louvre System.

Breezway screening

Screens

Improves the insulation and shading properties of your louvre windows. Suitable for most framing systems. Download the Easyscreen System Screen Deductions for more information.

For further details view the Breezway Design Manual.

Size Options

Altair Louvre Windows are custom manufactured to order, meaning there is a wide flexibility in sizes available. Please speak to your local window manufacturer for advice on your specific circumstances.

Heights
Standard heights are based off the chosen blade height of 102mm and 152mm. *Recommended Option*
Off Standard heights are available for single glazed Altair Louvres but will add cost to your window and result in a fixed louvre blade to act as a filler piece. The type of window frame chosen will affect the standard heights. See more in the TAB section below.

Widths
There are no standard louvre blade or louvre bay widths for single glazed Altair Louvres. However most bay widths are between 600mm to 900mm wide, or up to 1200mm if using the Stronghold System.

Breezway louvres fixed blade
The tabs provide a range of technical information relating to louvre sizes.
For further details view the Breezway Design Manual.

While Altair Louvre Windows can be manufactured in any size specified, the wind and water rating for the building project will affect the maximum allowable window height and bay width. Please refer to the Product Performance Warranty in the Breezway Design Manual for technical information.Standard Heights are measured from the lowest visible metal to the uppermost visible metal of the frame and excludes fins.

Off-Standard Heights are available but this will add cost and result in a fixed louvre blade to act as a filler piece. i.e. Greater than 5mm or less than a Standard Height. Off-Standard heights within 5mm of a Standard Height will not have a fixed top blade.

Notes for Powerlouvre System Standard Heights:
152mm Easyscreen Window System: Std height + 41mm is unavailable.
102mm Easyscreen Window System: Std heights only.

Notes for Stronghold System:
102mm Easyscreen Window System: Std height + 26mm through to Std heights + 36mm is unavailable.

No. of BladesAltair Louvres in Easyscreen Window System

Standard Heights

Altair Louvres in Slimline Window System

Standard Heights

Altair Louvres for Other Frames with Breezway Weatherstrip

Standard Heights*

152 mm Blade102 mm Blade152 mm Blade102 mm Blade152 mm Blade102 mm Blade
2371mm-345mm-330mm-
3511mm361mm485mm335mm470mm320mm
4651mm451mm625mm425mm610mm410mm
5791mm541mm765mm515mm750mm500mm
6931mm631mm905mm605mm890mm590mm
71071mm721mm1045mm695mm1030mm680mm
81211mm811mm1185mm785mm1170mm770mm
91351mm901mm1325mm875mm1310mm860mm
101491mm991mm1465mm965mm1450mm950mm
111631mm1081mm1605mm1055mm1590mm1040mm
121771mm1171mm1745mm1145mm1730mm1130mm
131911mm1261mm1885mm1235mm1870mm1220mm
142051mm1351mm2025mm1325mm2010mm1310mm
152191mm1441mm2165mm1415mm2150mm1400mm
162331mm1531mm2305mm1505mm2290mm1490mm
172471mm1621mm2445mm1595mm2430mm1580mm
182611mm1711mm2585mm1685mm2570mm1670mm
192751mm1801mm2725mm1775mm2710mm1760mm
202891mm1891mm2865mm1865mm2850mm1850mm
213031mm1981mm3005mm1955mm2990mm1940mm
22-2071mm-2045mm-2030mm
23-2161mm-2135mm-2120mm
24-2251mm-2225mm-2210mm
25-2341mm-2315mm-2300mm
26-2431mm-2405mm-2390mm
27-2521mm-2495mm-2480mm
28-2611mm-2585mm-2570mm
29-2701mm-2675mm-2660mm
30-2791mm-2765mm-2750mm
31-2881mm-2855mm-2840mm
32-2971mm-2945mm-2930mm
33-3061mm-3035mm-3020mm

1. To calculate the gallery height only, deduct 10mm.
2. To calculate the gallery height only for Powerlouvre Windows, deduct 40mm.

Note: Light Blue for Powerlouvre

There are no standard bay widths for single glazed Altair Louvre Windows. However, the bay width may be affected by Building code rules. Please refer to the Product Performance Warranty in the Breezway Design Manual for technical information.

Maximum Surround Frame Window Width = 4000mm (frame widths over 4000mm will need to be coupled on site or at a window fabricator’s factory)
Up to 6 Louvre Bays can be included in a single Surround Frame.
Louvre /fixed lite combination bays are available.

Notes for Powerlouvre System Standard Widths:
Minimum Bay Width for 2-9 blade high Powerlouvre Windows = 400mm
Minimum Bay Width for 10-18 blade high Powerlouvre windows = 500mm
